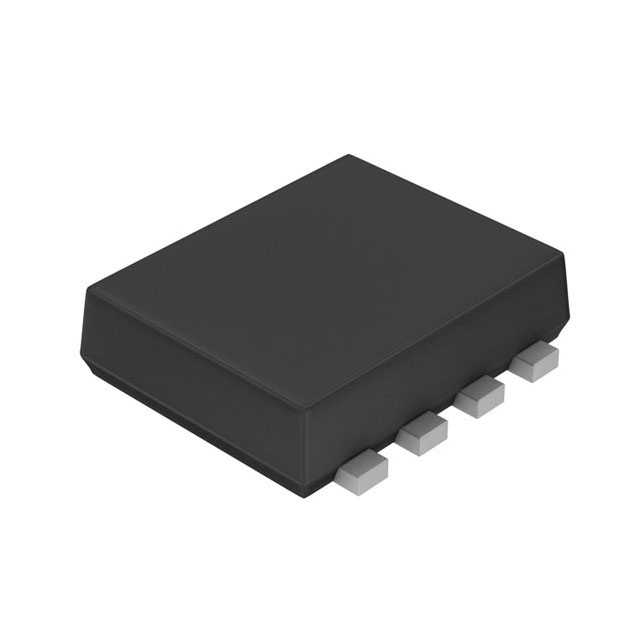

PCH -60V -5A SMALL SIGNAL POWER

Part Number: 846-RQ7L050ATTCRTR-ND

Manufacturer Product Number: RQ7L050ATTCR

Description: P-Channel 60 V 5A (Ta) 1.1W (Ta) Surface Mount TSMT8

Manufacturer: Rohm Semiconductor

Product Status: Active

Data Sheet: Download PDF

Get Quote

Type	Description
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	39mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2160 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	TSMT8
Package / Case	8-SMD, Flat Leads
