SMALL SIGNAL MOSFET N-CH VDSS=60

Part Number: 264-SSM6K809R,LFTR-ND

Manufacturer Product Number: SSM6K809R,LF

Description: N-Channel 60 V 6A (Ta) 1.5W (Ta) Surface Mount 6-TSOP-F

Manufacturer: Toshiba Semiconductor and Storage

Product Status: Active

Data Sheet: Download PDF

Get Quote

Type	Description
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	9.3 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	550 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	175°C
Grade	-
Qualification	-
Mounting Type	Surface Mount

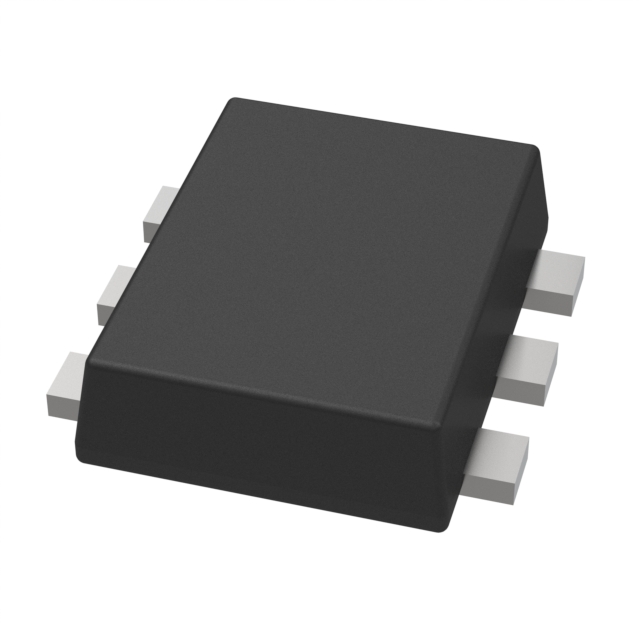

Supplier Device Package	6-TSOP-F
Package / Case	6-SMD, Flat Leads

Part Number: 264-SSM6K809R,LFTR-ND

Manufacturer Product Number: SSM6K809R,LF
