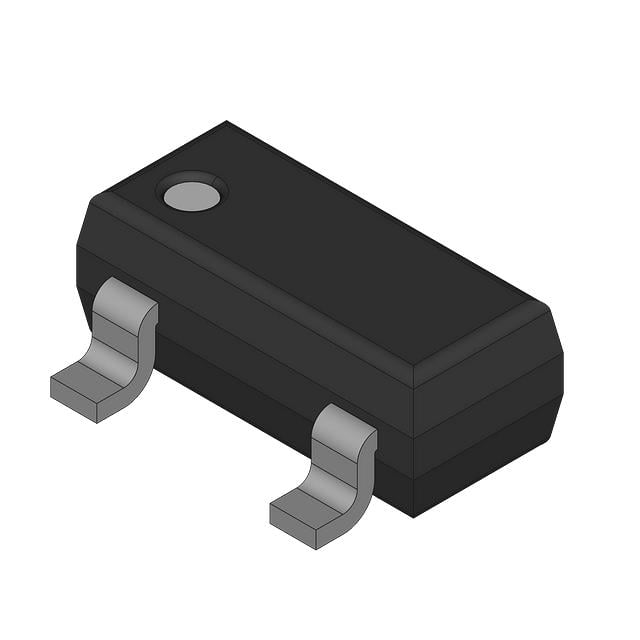

SMALL SIGNAL N-CHANNEL MOSFET

Part Number: 2156-BSS119NH7978XTSA1-ND

Manufacturer Product Number: BSS119NH7978XTSA1

Description: N-Channel 100 V 190mA (Ta) 500mW (Ta) Surface Mount PG-SOT23-3-5

Manufacturer: Infineon Technologies

Product Status: Active

Data Sheet: Download PDF

Get Quote

*Quote in 24 hours

*Global Delivery

*Lab Certificate On Request

Type	Description
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	190mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id	2.3V @ 13µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	20.9 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT23-3-5
Package / Case	TO-236-3, SC-59, SOT-23-3

Attribute	Description
ReachStatus	REACH not applicable
RohsStatus	Not Applicable
MoistureSensitivityLevel	1 (Unlimited)
ExportControlClassNumber	EAR99
HtsusCode	8541.21.0095
