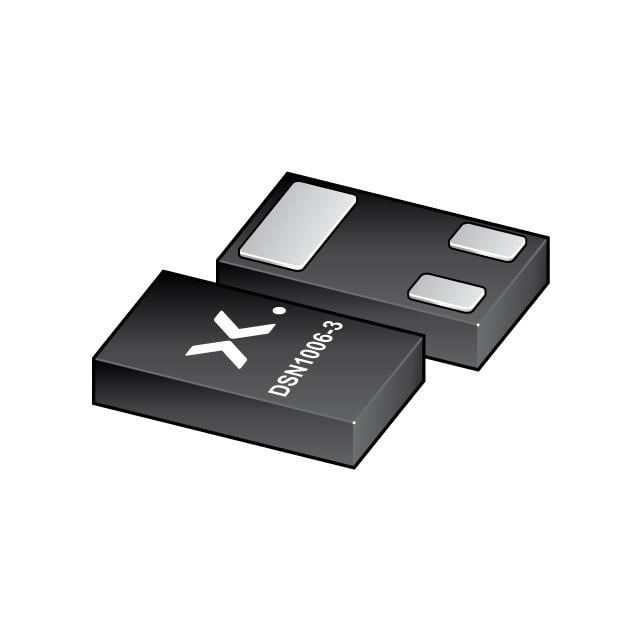

SMALL SIGNAL MOSFET FOR MOBILE

Part Number: 1727-PMCB60XNEAYLTR-ND

Manufacturer Product Number: PMCB60XNEAYL

Description: N-Channel 30 V 3.5A (Ta) 480mW (Ta), 7W (Tc) Surface Mount DSN1006-3

Manufacturer: Nexperia USA Inc.

Product Status: Active

Data Sheet: Download PDF

In-Stock: 404

Get Quote

*Quote in 24 hours

*Global Delivery

*Lab Certificate On Request

Type Description
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 55mOhm @ 3.5A, 4.5V
Vgs(th) (Max) @ Id 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7.5 nC @ 4.5 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 420 pF @ 15 V
FET Feature -
Power Dissipation (Max) 480mW (Ta), 7W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Supplier Device Package DSN1006-3
Package / Case 3-XFDFN
Attribute Description
ReachStatus REACH Unaffected
RohsStatus ROHS3 Compliant
MoistureSensitivityLevel 1 (Unlimited)
ExportControlClassNumber EAR99
HtsusCode 8541.29.0095
